Description

This device is used to clone 125 KHz FRID card. It can copy and duplicate the 125 KHz EM4100 / EM410X card /tag ID for backup purpose.

Support 125 KHz EM4100 / EM410X or compatible card /tag format only (HID standard NOT compatible!) so that you should reference the device module when you work. It’s very easy to use.

Name: Handheld second generation induction buckle copy machine set

Model: 513213

Material: Acrylonitrile Butadiene Styrene (ABS)

Dimension：71*117 *31mm

Distance:

   ≤25mm （keyfob）

   ≤60mm（card）

Supported blank tag：T5557, EM4305.

Working frequency: 125 KHz

Power: Two piece AAA battery, it can be use 20,000 times. (Batteries are not included)

Application：

You can copy all of the ID card, such as access cards, cell cards, parking cards.

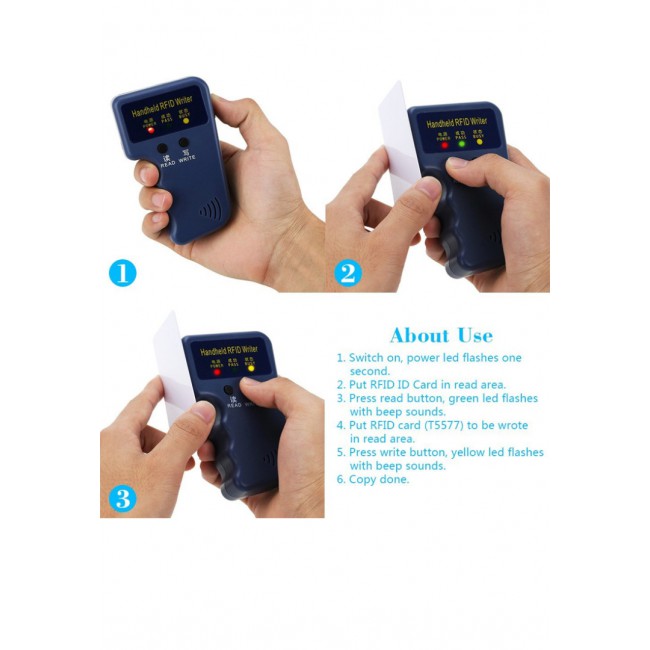

How to clone

1. Push power switch on the right of device, it will keep two or three times, and LED is on mean it works, if not restart please.

2. Put the other card near the antenna left of the device, and then press READ button, the device will keep and the LED is on when read successful, if beep 2 times go to step 3, if beep 3 times go to step 4, click READ again if it doesn’t beep.

3. Change a new blank card as T5557/EM4305，then press WRITE button, when beep PASS LED is on mean clone successful, if it doesn’t beep and light please write again.

4. Change a blank T5557, then press WRITE button, when beep PASS LED is on mean clone successful, if it doesn’t beep and light please write again.

5. Repeat step 3 or step 4 if you want to make more same ID card.

6. Switch off for save power.

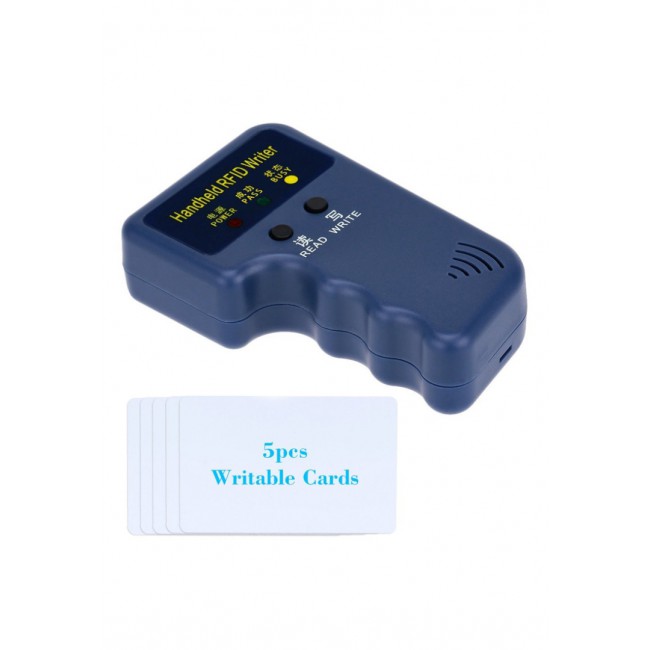

Package Included (Batteries are not included):

1 x Handle RFID Writer

5 x Cards
